PC Card Accessories

Kooler Kode™ Card Ejectors and Pull

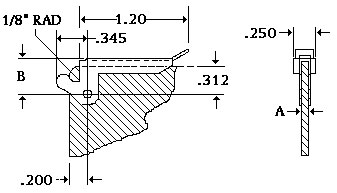

SERIES L1000-SS CARD EJECTORS

Light weight, sturdy metal p.c. card ejectors with cam lever for both insertion and extraction of p.c. cards.

Attach to p.c. card utilized a split pin or eyelet.

Material:  302 Stainless Steel
Finish:  Mil Fin

SERIES L1002 CARD EJECTORS

The Series L1002 card ejectors are small yet provide sufficient leverage to easily remove p.c. cards.  Molded of dimensionally stable polycarbonate resin.  Ten colors are available (see Table for ordering colors by dash number added to catalog number).

SERIES L1003 CARD EJECTORS

Molded of dimensionally stable Polycarbonate Plastic in colors for circuit identification.

Attach to p.c. card in standard hole locations (.250 x .250) utilizing a split pin or eyelet.  On wide cards two ejectors should be used to more easily insert or extract cards.

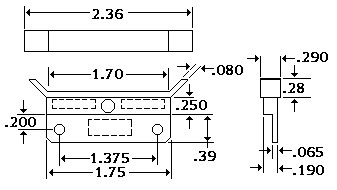

CARD PULL

Fully insulated Plastic Card Pull can be fastened to p.c. boards by riveting or eyeleting.

Card spacing of .300 centers is possible because of narrow width.
